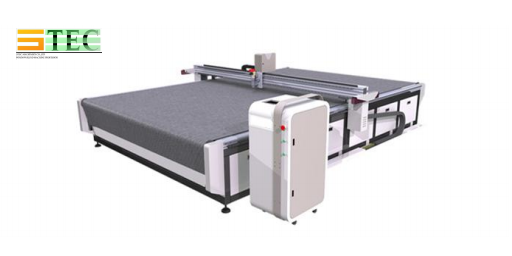

XY Rotary Blade Cutting Machine with 1500mm/s Translational Velocity, 0.1mm~20mm Cutting Thickness, and ±0.1mm Positioning Accuracy for Roller Blind Fabric

Name: XY Rotary Blade Cutting Machine with 1500mm/s Translational Velocity, 0.1mm~20mm Cutting Thickness, and ±0.1mm Positioning Accuracy for Roller Blind Fabric
Brand: Guangzhou Shiteng Technology Co., Ltd.
SKU: STRC-LA3240
Price: 20,000.00 USD
Availability: InStock

Brand Name:	STEC
Model Number:	STRC-LA3240
MOQ:	1set
Price:	18000-22000USD/set
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	10pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

STRC-RA32.pdf

Positioning Accuracy:

+-0.1mm

Cutting Thickness:

0.1mm~20mm

Fixed Model:

Vacuum Suction Worktable

Product Name:

CNC Curtain Cutting Machine

Working Area:

W3000*4000MM

Translational Velocity:

1500mm/s

Power Supply:

AC 220v 50/60Hz(or Customerized)

Rated Power:

3.5KW

Packaging Details:

steel frame with poly wood cover

Supply Ability:

10pcs/month

Highlight:

1500mm/s Translational Velocity Rotary Blade Cutting Machine

0.1mm~20mm Cutting Thickness CNC Curtain Cutting Machine

±0.1mm Positioning Accuracy Roller Blind Cutting Machine

Product Description

Product Details

MODEL:STRC-LA3240

Certificate:CE

This machine is used to producing fabric roller blind with processing of automatic XY cutting

Specification

Power supply:AC 220v 50/60Hz(or customerized)

Rated Power:3.5KW

Working area:W3000*4000MM

Max cutting speed:1200mm/s, translational velocity:1500mm/s

Positioning accuracy:+-0.1mm

Cutting Thickness:0.1mm~20mm

Accessories

1set 9KW air vacuum blower
1 set air compressor
1set feeding rack
12pcs blade

Trait

Driven system: servo motor,HIWIN linear rail,Mitsubishi system support file format(DXF/PLT/AI/JPG/BMP)
Automatic fabric feeding,continuous cycle cutting
infrared sensor;sensitive response;safe and reliable

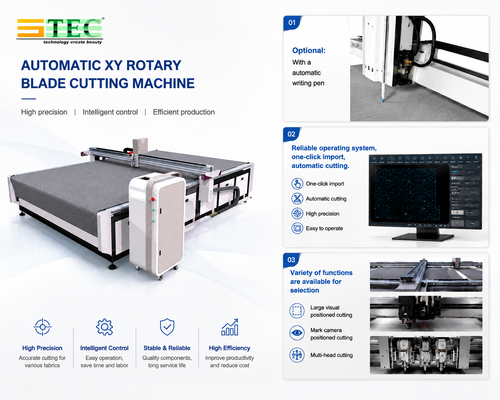

With a automatic writing pen
Reliable operating system, one-click import, automatic cutting.
variety of functions are available for selection, large visual positioned cutting, mark camera positioned cutting, multi-head cutting
